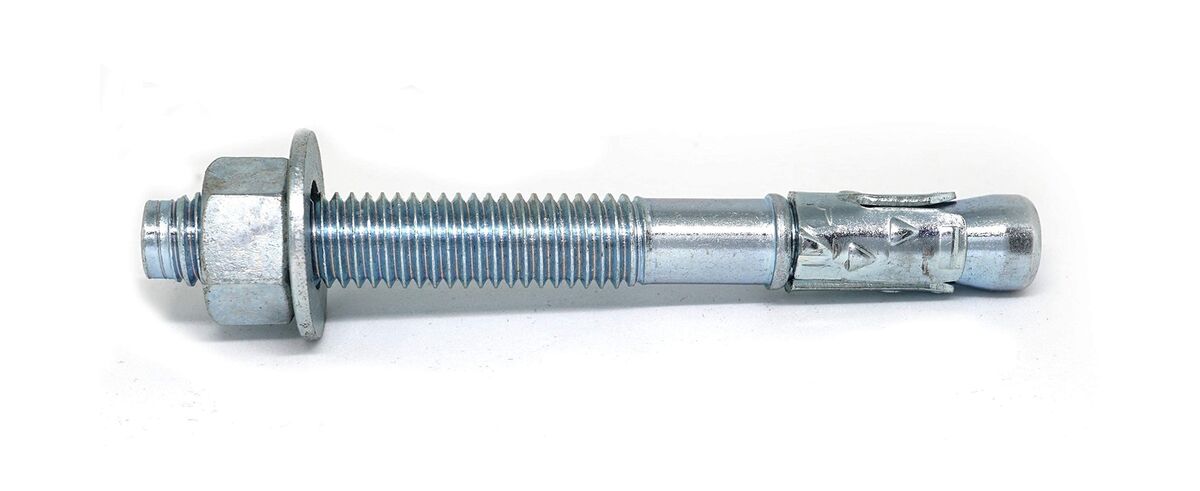

CONFAST 3/4 X 5-1/2 Wedge Anchor Zinc Plated (Box Of 6)

ApplicationsThe anchor is made from Carbon Steel, and is Zinc Plated. This anchor is designed for use in Concrete, Block, and Brick. EnvironmentThe anchor is designed for use in a Dry environment. Diameter of Anchor The diameter of the anchor is 3/4. Length Anchor The length of the anchor is 5-1/2Minimum EmbedmentThe minimum anchor embedment into the concrete is 2-1/4. Maximum Fixture ThicknessThe maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 3-1/4. Fixture Hole DiameterThe hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. Spacing between AnchorsEach anchor must be spaced a minimum distance of 7-1/2 from each other when measured center to center. VERSATILE - Can be installed in a wide variety of masonry, solid concrete, brick or block 360 DEGREE EXPANSION - Provides consistent holding values in a wide range of base materials ALL STEEL PARTS - Heavy duty for the most demanding jobs ANCHOR SIZE EQUALS HOLE SIZE - Easy to remember correct hole size for best results
