Description

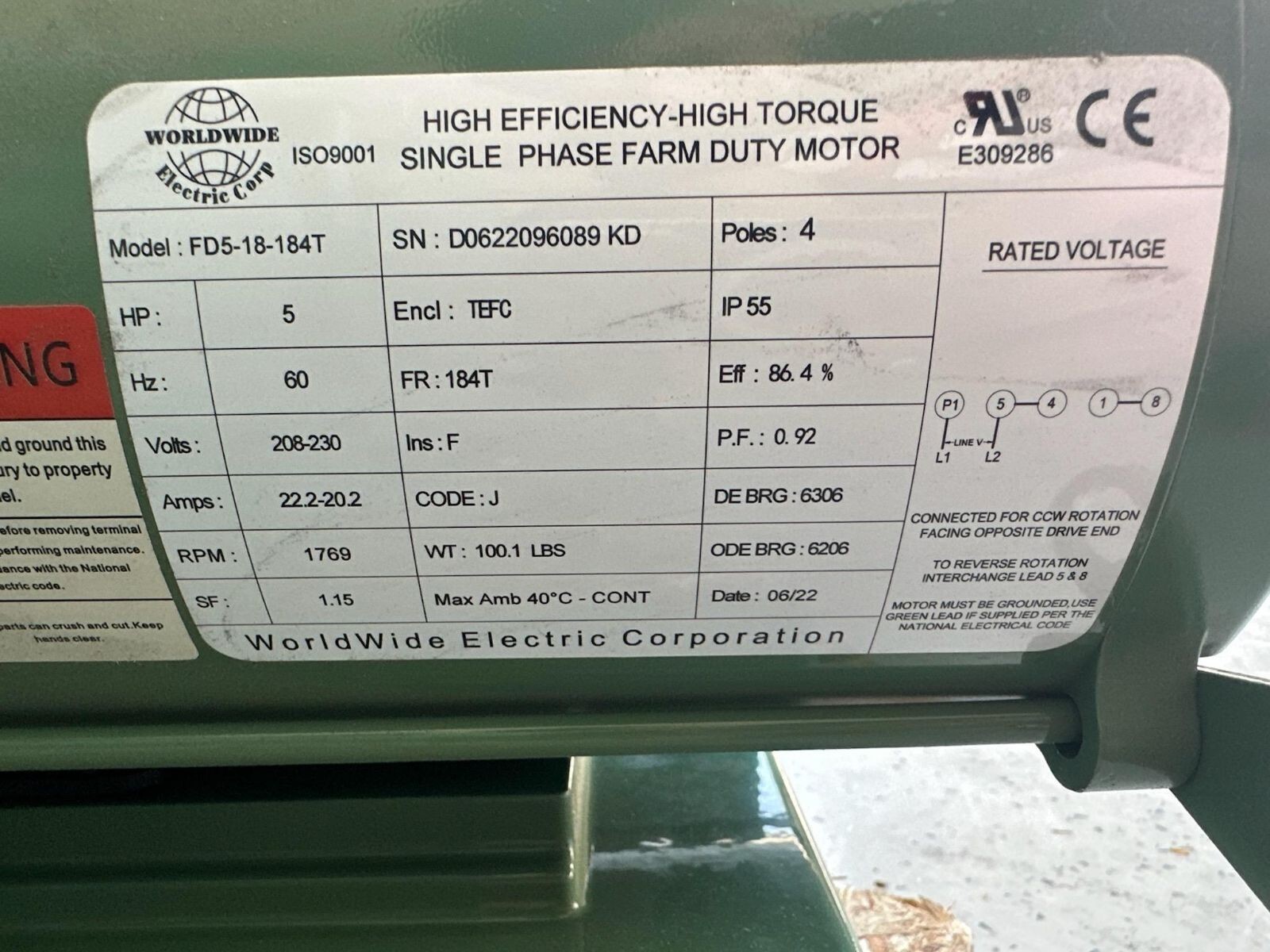

5 horsepower, single phase farm duty, TEFC electric motor with rigid base. This motor features Class F insulation, fan cooling, a 1.15 service factor, a TEFC / IP55 enclosure, and a manual overload. Specifications: 5 Horsepower Single Phase TEFC / IP55 Fully Enclosed Poles: 4 184T Frame Service Factor 1.15 Class F Insulation 208-230 Volt 1800 RPM Fan Cooled Worldwide Electric Brand Shaft Length: Approximately 2 7/8 Keyed 1 1/8 Diameter Shaft Current: AC Full Load Amps: 22.2-20.2 60 HZ Shaft Material: 1045 Carbon Steel Max Temp: 40 Degrees C Weight Approx: 93 Lbs. 5 Horsepower Single Phase TEFC / IP55 Fully Enclosed Poles: 4 184T Frame
